COMPANY INTRODUCTION
Cangzhou Doushan Machinery Manufacture Co.,Ltd offer a economical and reliable solution where threaded joints with nuts or couplers are used in the reinforced concrete and tying applications. Our products range from wing nuts, water stops, hex nuts, couplers, and washers/plates to tie rods, all for the nominal thread diameter 15mm (DG 15/17), 20mm(DG20/22), other sizes of thread available on request.
PRODUCTION PROCESS
PRODUCTION DESCRIPTION
2. Dia.:120mm
3. Used tie rod: 15/17mm
4. Surface: Galvanized
Formwork Swivel Wing Nut
Anchor nut/Wing nut/Water stopper/Cone nut/Hex nut
. It is a tie rod accessory which is used by being connected to both ends of the tie rod.
. There is no need for special wrench for assemby and demount.
. It is easily used by being connected to both ends of the tie rod.
. It is durable as it is made of spher casting
. It is used for 15/17mm tie rod.

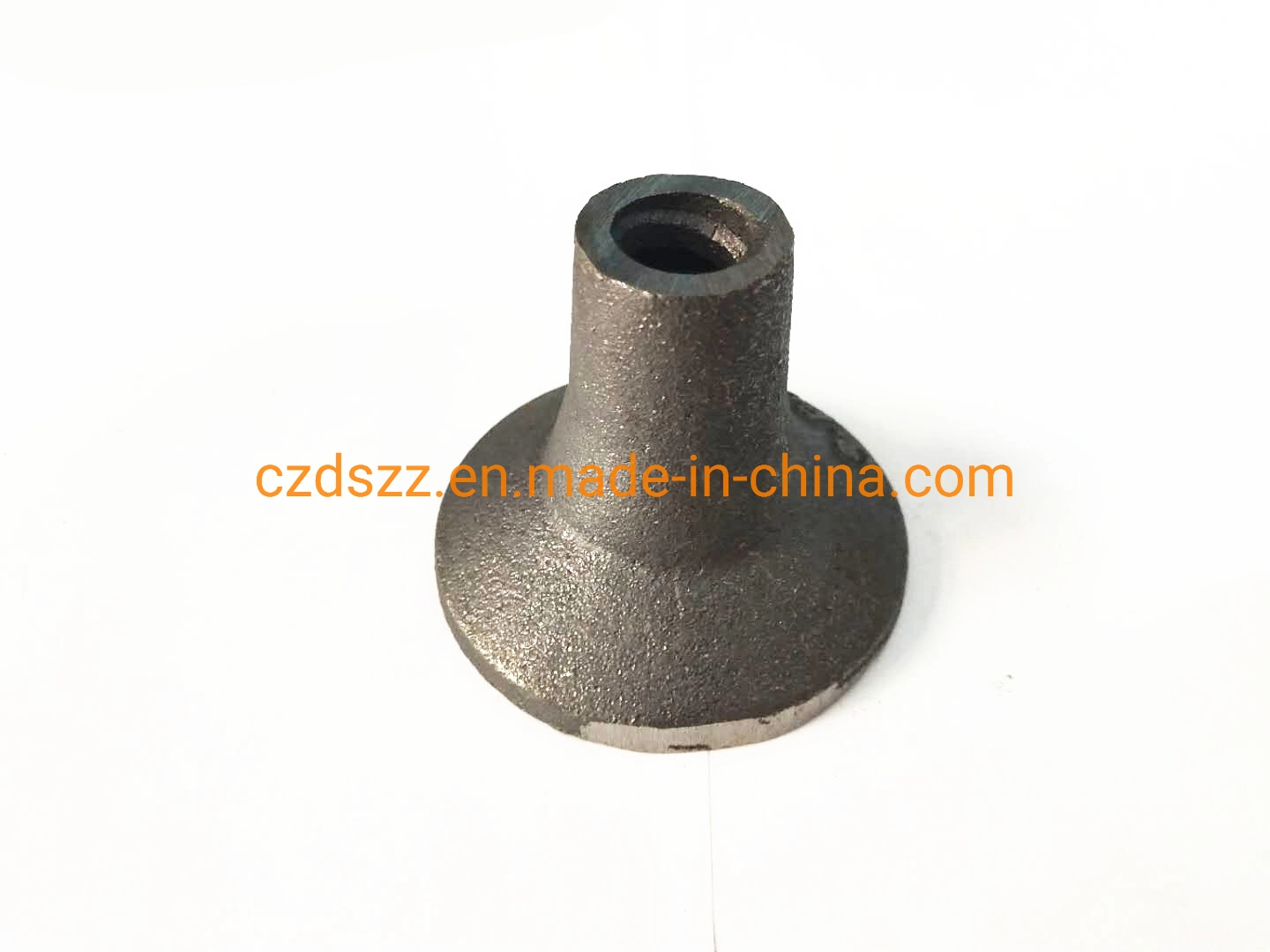

Anchor Nut in Cast Iron is made by high strength steel grade material.Anchor Nut can be in 2 wings, 3 wings and 4 wings, in different types and shape customized.Anchor Nut is used as clamp nut connect normally steel tie rod and tie bars in concrete form work and shuttering work that as connector joint clamp in fixing concrete formwork system of wall formwork, slab formwork, column formwork, beam formwork, floor formwork, and table formwork.
Anchor Nuts are specially designed to provide strong and vibration proof threads in thin walled materials and can be quickly and easily be fitted
The Screw Jack Base head is used at the top of the cup lock standard (Vertical) to provide an additional maximum adjustment of length up to 300 - 600 mm. It is designed to be used in conjunction with adjustable system scaffolding.
Our Jack Nut made of iron casting used to adjust the working heights.
This mobile Top Cups made out of malleable casting provide firm grip to Ledger Blades making the connection rigid and to endure rough site handling. It is free on the cup lock vertical to ensure providing a safe connection at any direction for the horizontal ledger attachment.
Specification:
*Made from cast iron.
*Top Cup is available for the pipe of 48.3mm OD and in 3lugs and 4lugs.
*Weight : 0.46 KG
PACKAGE AND SHIPMENT
Cangzhou Doushan Machinery Manufacture Co.,Ltd offer a economical and reliable solution where threaded joints with nuts or couplers are used in the reinforced concrete and tying applications. Our products range from wing nuts, water stops, hex nuts, couplers, and washers/plates to tie rods, all for the nominal thread diameter 15mm (DG 15/17), 20mm(DG20/22), other sizes of thread available on request.
PRODUCTION PROCESS
PRODUCTION DESCRIPTION
Swivel anchor wing nut for tie rod
1. Wing nut2. Dia.:120mm
3. Used tie rod: 15/17mm
4. Surface: Galvanized
Formwork Swivel Wing Nut
Anchor nut/Wing nut/Water stopper/Cone nut/Hex nut
. It is a tie rod accessory which is used by being connected to both ends of the tie rod.
. There is no need for special wrench for assemby and demount.
. It is easily used by being connected to both ends of the tie rod.
. It is durable as it is made of spher casting
. It is used for 15/17mm tie rod.
| Item | Size (mm) | Weight(Kg) | Tensile Strength(MPa) | ||
| Anchor Nut (3 Wings) | ø100 20/10 | 0.73 | 500 | ||
| Anchor Nut (2 Wings) | ø100 17/10 | 0.59 | 500 | ||
| Anchor Nut (2 Wings) | ø90 17/10 | 0.6 | 500 | ||
| Anchor Nut (2 Wings) | ø80 17/10 | 0.43 | 500 | ||
| Climbing Cone | 20/10 | 0.71 | 500 | ||
| Climbing Cone | 17/10 | 0.47 | 500 | ||
| Wing Nut | 20/10 | 0.62 | 500 | ||
| Wing Nut | 17/10 | 0.32 | 500 | ||
| Top Cup | ø80 | 0.49 | 500 | ||
| Swivel Nut | 20/10 | 1.15 | 500 | ||
Anchor Nut in Cast Iron is made by high strength steel grade material.Anchor Nut can be in 2 wings, 3 wings and 4 wings, in different types and shape customized.Anchor Nut is used as clamp nut connect normally steel tie rod and tie bars in concrete form work and shuttering work that as connector joint clamp in fixing concrete formwork system of wall formwork, slab formwork, column formwork, beam formwork, floor formwork, and table formwork.
Anchor Nuts are specially designed to provide strong and vibration proof threads in thin walled materials and can be quickly and easily be fitted
The Screw Jack Base head is used at the top of the cup lock standard (Vertical) to provide an additional maximum adjustment of length up to 300 - 600 mm. It is designed to be used in conjunction with adjustable system scaffolding.
Our Jack Nut made of iron casting used to adjust the working heights.
This mobile Top Cups made out of malleable casting provide firm grip to Ledger Blades making the connection rigid and to endure rough site handling. It is free on the cup lock vertical to ensure providing a safe connection at any direction for the horizontal ledger attachment.
Specification:
*Made from cast iron.
*Top Cup is available for the pipe of 48.3mm OD and in 3lugs and 4lugs.
*Weight : 0.46 KG
