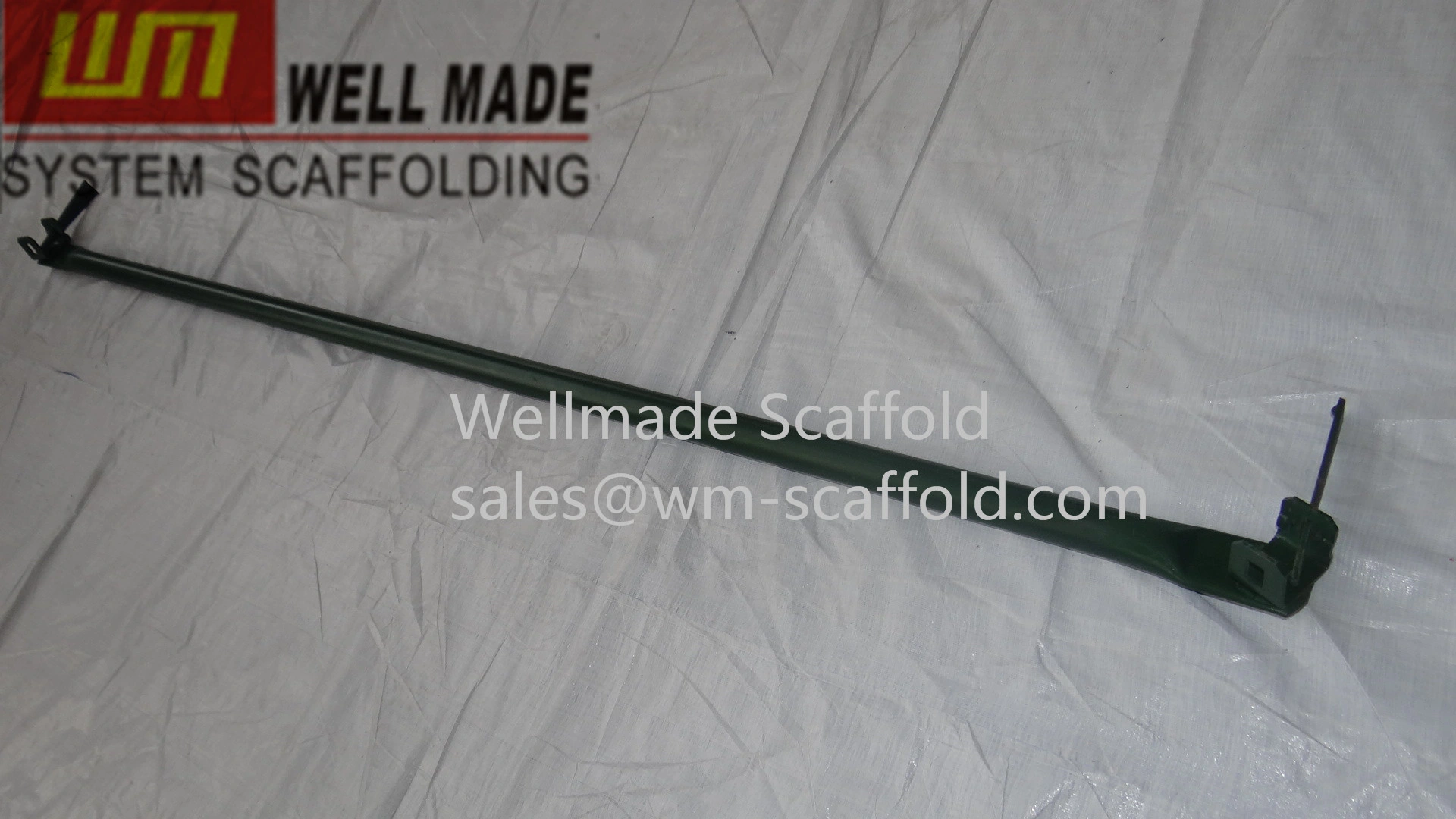

Kwikstage Scaffolding Diagonal Braces are made of High strength structural steel pipe in OD 48.3mm,thicknees could be 2.5-3.2mm according to requirements.The braces provide an additional stabilising influence on the scaffold and are flattened at each end, to accept a swivel "c" coupler with a captive wedge. Braces come in various lengths.Kwikstage Scaffolding Components Include Kwikstage Standard, Ledger, Transom, Brace, Mesh Guard, Toe Board, Hop Up Bracket, Tie Bar, etc.
Wellmade Kwikstage Scaffolding Braces are manufactured under the guidance of ISO accreditation to meet all scaffolding needs for Industrial,Commercial & Residential Construction Projects,Oil & Gas Service,Offshore & Onshore Engineering Projests and Shipbuilding Serice.Every single Kwikstage scaffoldings are tested by Wellmade Testing Department for strength and durability to ensure the scaffolding is top quality.
Description | Specification | Length | Surface Finish | Steel Grade |
Standard | 48.3x4.0mm | 500mm | Galvanized/Painted | Q235/Q345 |
48.3x4.0mm | 1000mm | Galvanized/Painted | Q235/Q345 | |
48.3x4.0mm | 1500mm | Galvanized/Painted | Q235/Q345 | |
48.3x4.0mm | 2000mm | Galvanized/Painted | Q235/Q345 | |
48.3x4.0mm | 2500mm | Galvanized/Painted | Q235/Q345 | |
48.3x4.0mm | 3000mm | Galvanized/Painted | Q235/Q345 | |
Ledger | 48.3x3.2mm | 500mm | Galvanized/Painted | Q235/Q345 |
48.3x3.2mm | 700mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 800mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 1000mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 1200mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 1800mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 2400mm | Galvanized/Painted | Q235/Q345 | |
Brace | 48.3x3.2mm | 500mm | Galvanized/Painted | Q235/Q345 |
48.3x3.2mm | 700mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 1200mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 1800mm | Galvanized/Painted | Q235/Q345 | |
48.3x3.2mm | 2400mm | Galvanized/Painted | Q235/Q345 | |
Transom | 50.0x50.0x5.0mm | 500mm | Galvanized/Painted | Q235/Q345 |
50.0x50.0x5.0mm | 700mm | Galvanized/Painted | Q235/Q345 | |
50.0x50.0x5.0mm | 1200mm | Galvanized/Painted | Q235/Q345 | |
50.0x50.0x5.0mm | 1800mm | Galvanized/Painted | Q235/Q345 | |
50.0x50.0x5.0mm | 2400mm | Galvanized/Painted | Q235/Q345 |



More Details
Brand Name | WM Scaffold |
Place of Origin | Tianjin,China |
Standard | EN 12810 AS/NZS 1576 BS 1139 EN 74 |
Certificate | SGS Test Report |
Features | Antomatic Welding |
Service | OEM Service |
MOQ | 1x20' GP Container |
Payment | T/T, L/C |
Delivery Time | 20-30 days after confirmation |
Package | In Bulk or Steel pallet as your requiements |
After-sell Service | Warranty available |
Company Profile
Wellmade Scaffold Co.,Ltd is a leading Scaffolding Manufacturer in China,Located in Tianjin,China.
We produce high quality Scaffolding Systems including Ringlock,Cuplock,Kwikstage and Frame scaffolding,steel pipes,steel props and formwork accessories.Wellmade Scaffoldings are conformed to ISO9001:2015 Quality Management System and international scaffolding standard of BS1139, En74, EN39, EN10219, EN12811, En12810, AS/NZS 1576.Find further products and more information welcome to visit Wellmade website wellmadescaffold.en.made-in-china.com

With over 20 years of manufacturing and exporting experience to over 55 countries,Wellmade Scaffold has offered scaffolding products to various construction projects specialize in Commercial and Industrial Construction,Oil ,Gas&Chemicals,Power & Energy and Mining & Refining projects.
Wellmade Scaffold offers services from Scaffolding materials fabrication to loading,also offer Door to Door service.Wellmade Scaffold has a group of professional engineers to offer scaffolding drawing and designing solutions.
Welcome to get quotations by mails,our sales will reply you in 24 hours.
